Real Time Corrections to Improve Rover Positional Accuracy
Attention:
RTN user account passwords do not become “invalid”. Do not change a password due to an error message from a data collector or user interface. These default messages may occur due to a lack of connection to the internet. Verify that the correct password is being used and that the equipment is connected to the internet. The user equipment must be connected by internet to the SCRTN server to receive network corrections.
The South Carolina Real Time Network (SC RTN):

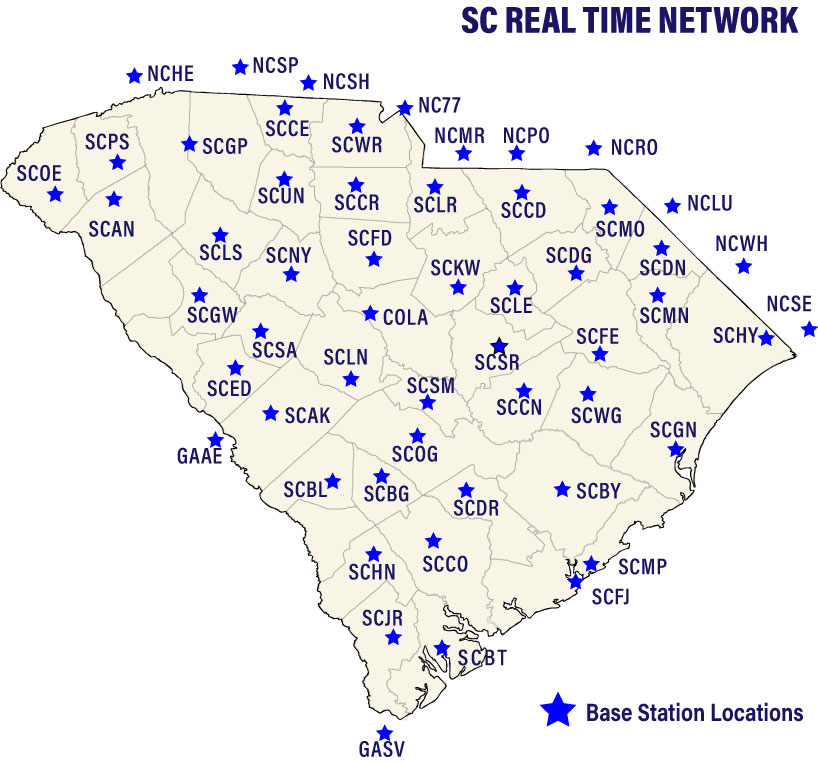

Ensures accurate, real-time positioning for improved efficiency for engineering, surveying, automated road construction, precision agriculture, mining, and golf course maintenance via 43 Global Navigation Satellite System (GNSS) receivers installed throughout the state.
In addition to the 43 receivers in South Carolina, data is received from two receivers in Georgia and ten receivers in North Carolina. Each receiver is connected via the internet to the SC RTN primary server and emergency backup servers utilizing cloud-based technology. Satellite data from the GPS, GLONASS, Galileo, and BeiDou constellations are collected and processed every second. Users connect to the servers via mobile cellular service and use the processed information in combination with GNSS data that they are collecting in the field to obtain corrected positions and elevations accurate to approximately 0.02 m (0.06 ft) horizontally and 0.04 m (0.13 ft) vertically in real time. South Carolina was one of the first states to implement this technology, at this scale.
Need to plan...
Your GPS survey with the most common almanac
You may very well need to change the health settings when you use Yuma or SEM almanac data. While the orbital description data is generally usable for months, the satellite health may change at any time.
The current conditions of GPS Satellites
For information on satellite health at times other than the almanac "Time Of Applicability", see the NANUs or status messages. An almanac entry of 000 indicates the satellite is healthy.
